Description

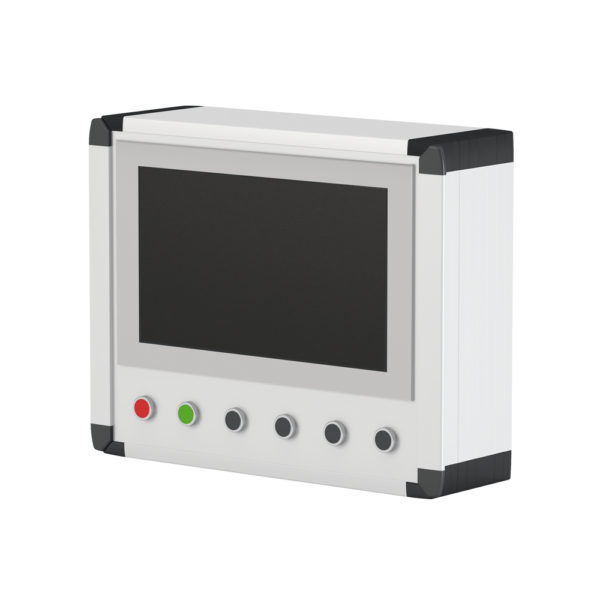

CC3000 – Control Enclosures
- Aluminium panel enclosure for the installation of controllers and IPCs
- Maximum external dimensions 600 mm x 600 mm
- Focus on cost-efficiency
- Various enclosure depths for different applications
- Individual configuration by experienced staff
Product features:
- Depths from 120 mm up to max. 255 mm
- Installation depths from 103 mm up to max. 246 mm
- Optional design as double frame or console version
- Front panels internally-mounted or externally-mounted
- Rear panel fixed with screws or swivelling with lock
- Version without or with handle strip and freely positionable
- Extensive range of accessories
Technical Data:
Material sections: Aluminium extruded natural anodised RAL-number 9006, other RAL colours on request
Material corners: Aluminium die cast RAL-number 9006 white aluminum, other RAL colours on request
Surface: Front and rear panels natural anodised, other RAL colours on request
Degree of protection (IP): IP65 according to DIN EN 60529
Temperature range: -30°C to +80°C
