Description

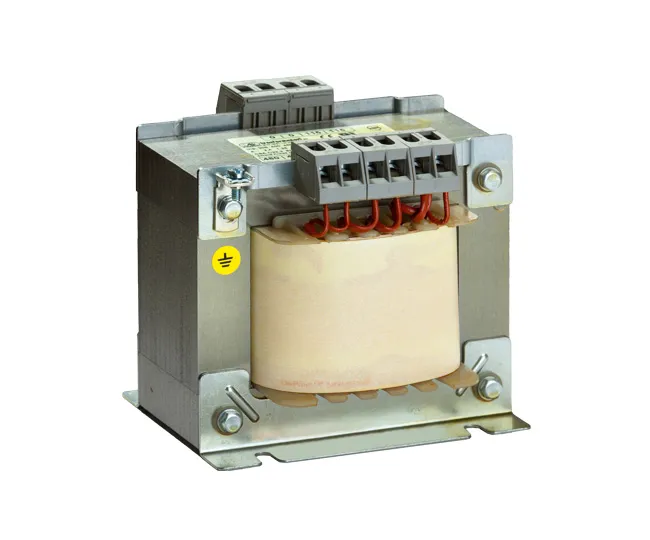

Single-phase and three-phase electromedical transformer isolation – safety
Power: 30 ÷ 10000 VA
Input voltage: 200 ÷ 600 VAC
Output voltage: 6 ÷ 600 VAC
Technical data
Duty cycle: continuous
Frequency: 50/60 Hz
Protection rating: IP 00
Terminal block protection rating: IP 20
Ambient temperature: +40°C MAX
Thermal insulation class: B/130°C or F/155°C
Protection against direct and indirect contact: class I
Winding material: copper
Standards: EN61558-2-4 EN61558-2-6 EN60601-1
Approvals: cURus (insulation systems AB155 UL CSA fi le number E340840)
Manufactured in compliance with CEI EN60601-1 for incorporation in electromedical devices.
The distinctive features of this transformer are the overheating protection of the basic insulation, the supplementary insulation, and the reinforced insulation in the event of short circuit or overload of each output winding.
The electrostatic shield interposed between the primary and secondary windings is ever present. MEDC series units are manufactured on demand.
